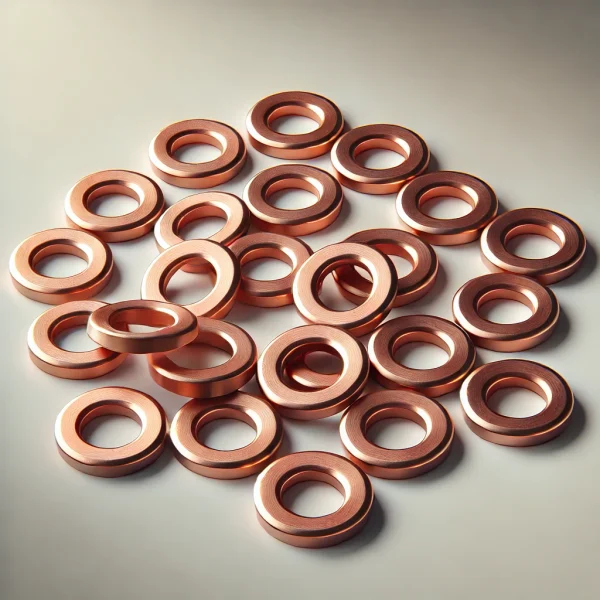

Copper Washers: Essential Components in Engineering
Copper washers are indispensable components in many industries due to their versatility, corrosion resistance, and excellent thermal and electrical conductivity. These fasteners serve as critical elements in ensuring secure connections, leak prevention, and load distribution in mechanical and electrical assemblies. In this blog, we delve into the various types, standards, material types, manufacturing processes, and industries served by copper washers.
Types of Copper Washers
Copper washers come in various forms, each designed for specific applications:
- Flat Washers
- Provide even load distribution and prevent surface damage.
- Spring Washers
- Offer flexibility and maintain tension in bolted assemblies.
- Sealing Washers
- Used in applications requiring leak prevention, such as hydraulic and pneumatic systems.
- Tab Washers
- Feature tabs to prevent rotation in high-vibration environments.
- Lock Washers
- Designed to prevent fasteners from loosening due to vibrations or torque.
- Conical Washers
- Provide axial flexibility and maintain tension under dynamic loads.
- Dome Washers
- Offer decorative finishes and load distribution in specific applications.
Standards for Copper Washers
Copper washers are manufactured to meet various international standards, ensuring consistency in quality and performance. Below is a table of common standards:
| Standard | Description |
|---|---|
| DIN 7603 | Sealing washers for hydraulic applications. |
| DIN 125 | General-purpose flat washers. |
| BS 4320 | British standard for flat and lock washers. |
| ASTM F436 | Specifications for hardened washers. |
| ISO 7090 | Flat washers for general use. |
Material Types
Copper washers are made from various copper-based alloys, tailored to specific needs:
- Pure Copper (C110): High conductivity and corrosion resistance.
- Brass (C260): Added strength and machinability.
- Bronze (C510): Superior wear resistance.
- Beryllium Copper (C172): High strength and conductivity.
Typical Sizes
Copper washers are available in a wide range of sizes:
- Inner Diameter (ID): 1 mm to 50 mm or custom sizes.
- Outer Diameter (OD): 2 mm to 100 mm.
- Thickness: 0.2 mm to 10 mm.
Custom dimensions can be produced based on specific application requirements.
Manufacturing Process
The production of copper washers involves precise engineering to ensure quality and reliability:
- Material Selection
- High-quality copper or copper alloy sheets or rods are chosen.
- Cutting
- Sheets are cut into blanks using stamping or laser cutting.
- Forming
- Washers are shaped using pressing or machining processes.
- Heat Treatment
- Enhances mechanical properties and stress relief.
- Finishing
- Deburring, polishing, and coating (if required) are performed to improve aesthetics and performance.
- Quality Inspection
- Washers are tested for dimensional accuracy, hardness, and surface finish.
Industries Served
Copper washers are widely used across various industries, including:
- Automotive
- Used in engines, braking systems, and fluid connections.
- Aerospace
- Essential in high-performance and high-temperature applications.
- Electrical
- Provide excellent conductivity and corrosion resistance in electrical assemblies.
- Plumbing
- Serve as sealing components in pipes and fixtures.
- Marine
- Corrosion-resistant properties make them ideal for marine environments.
- Oil & Gas
- Widely used in sealing and high-pressure applications.
Advantages of Copper Washers
- Corrosion Resistance: Ideal for harsh environments.
- Thermal Conductivity: Efficient in high-temperature applications.
- Electrical Conductivity: Suitable for electrical and electronic assemblies.
- Durability: Long-lasting and resistant to wear.
Conclusion
Copper washers play a vital role in ensuring the integrity and reliability of mechanical and electrical assemblies. Their versatility, coupled with superior material properties, makes them a preferred choice across numerous industries. By adhering to international standards and employing advanced manufacturing techniques, copper washers continue to be essential components in modern engineering applications.
Whether you need standard sizes or custom specifications, copper washers offer solutions for a wide range of applications, ensuring performance, safety, and durability.
